> Products

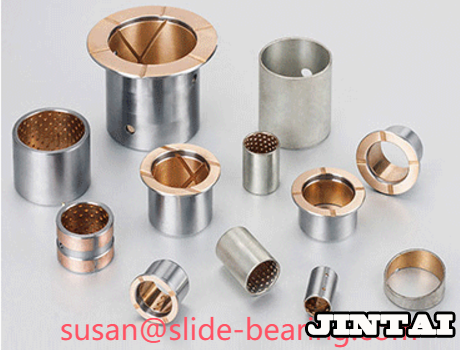

Bushing Bearing
- slide bearing
- plain bushing
- various of bush bearings
- sliding bushings
- Product description: all various and materials of bush and bearing
PRODUCT INTRODUCTION
Products Description

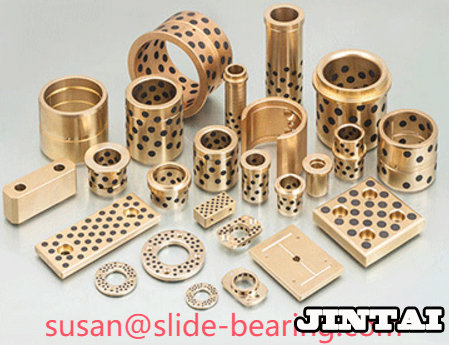

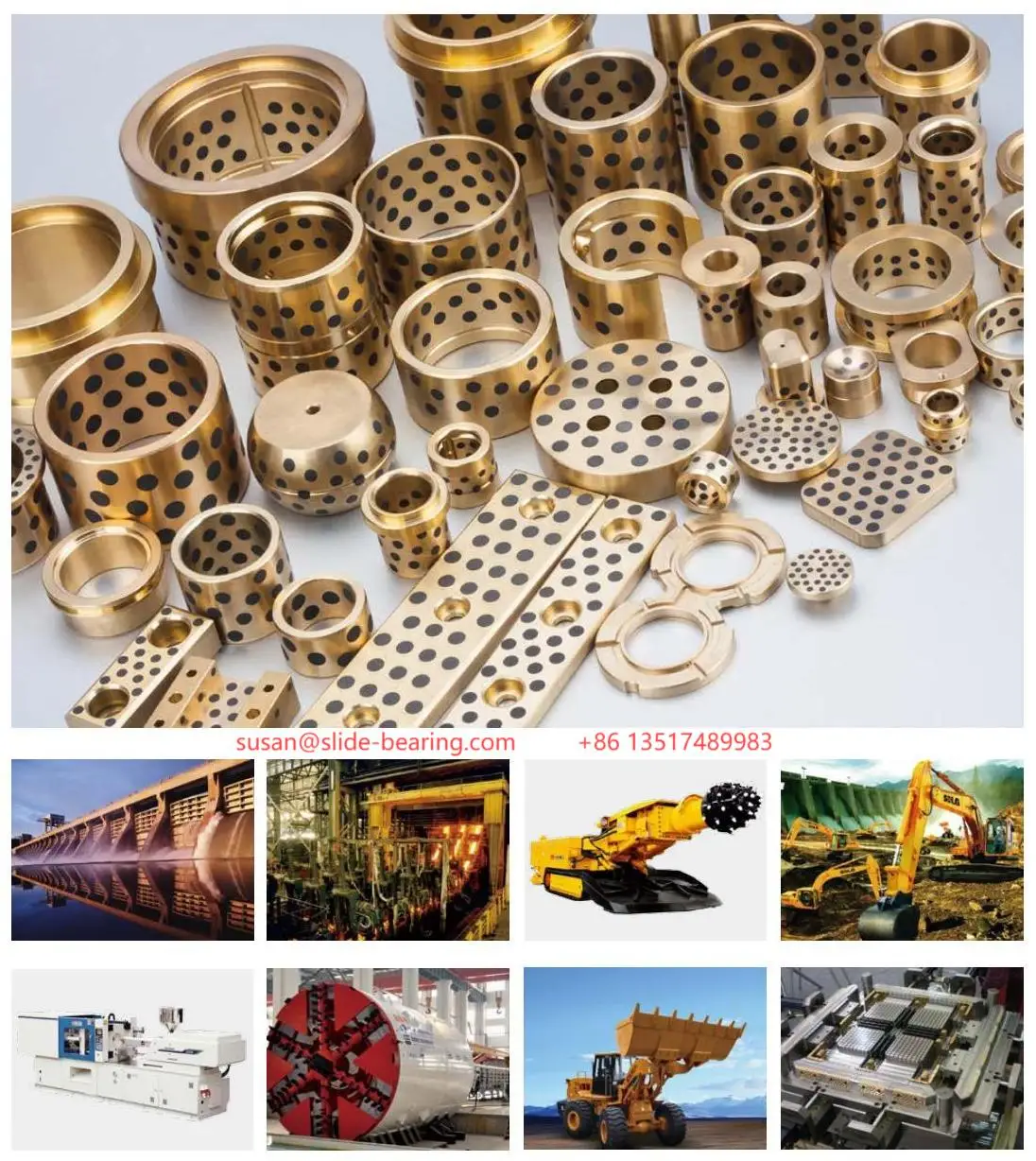

Metallic self-lubricating bearings solid lubricating bearing graphite bronze bushing
Structure Characteristics
solid self-lubricating bearing materials consist of high strength metal with solid lubricants embedded, the metal has high load capacity and solid lubricants provided low friction during the operation, this construction reduces maintenance cost for both bearing and machinery. Based on the above technique theory, we developed steel shell cast bronze with graphite plug bearings for economic and impact load application,steel with graphite plug bearings dispersed solid lubrication bearings for lower friction applications.
Material Properties
* Allows maintenance-free and long-life operation;
* Suitable for high static and dynamic loads;
* With low and smoothly coefficient of friction and without stick-slip effects;
* Suitable for dirty, corrosion, impact load and edge loading;
* The base material provided a good shock-absorbing capacity;
* Can be used over a large temperature range;
* Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
* With low wear rate and long life service.
Application
Injection molding machine, automotive moulds, hydrocylinder, gear case, gas turbine, water turbine, Crane support...
solid self-lubricating bearing materials consist of high strength metal with solid lubricants embedded, the metal has high load capacity and solid lubricants provided low friction during the operation, this construction reduces maintenance cost for both bearing and machinery. Based on the above technique theory, we developed steel shell cast bronze with graphite plug bearings for economic and impact load application,steel with graphite plug bearings dispersed solid lubrication bearings for lower friction applications.
Material Properties
* Allows maintenance-free and long-life operation;
* Suitable for high static and dynamic loads;
* With low and smoothly coefficient of friction and without stick-slip effects;
* Suitable for dirty, corrosion, impact load and edge loading;
* The base material provided a good shock-absorbing capacity;
* Can be used over a large temperature range;
* Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions;
* With low wear rate and long life service.
Application
Injection molding machine, automotive moulds, hydrocylinder, gear case, gas turbine, water turbine, Crane support...

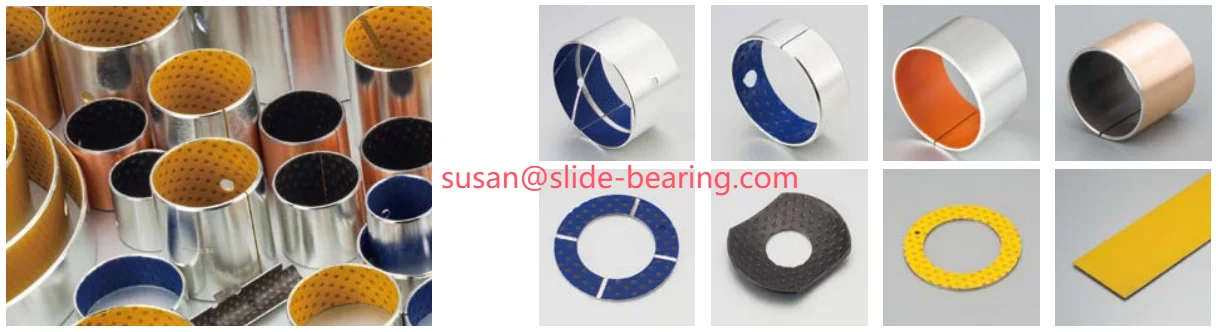

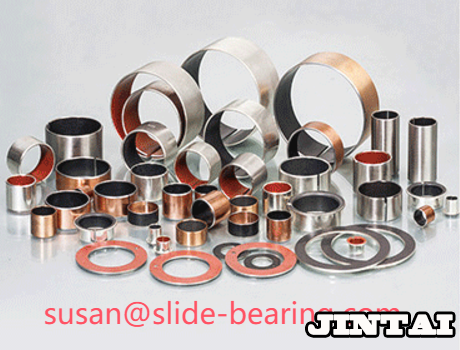

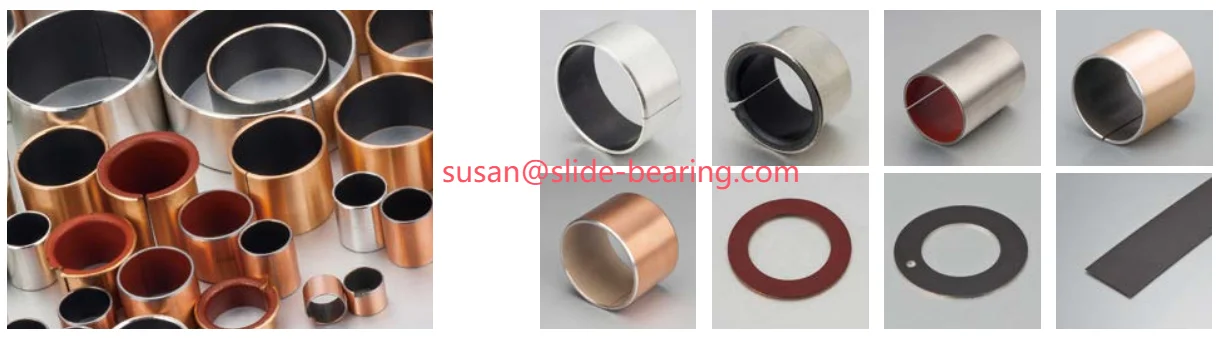

Metal-polymer self-lubricating composite bearings
Structure Characteristics
Metal-polymer self-lubricating composite materials consist of metal backing sintered porous bronze with PTFE polymer as working layer. The metal backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bonding between the backing and the bearing lining, the PTFE polymer offers exceptional low friction even under dry condition and the thermoplastic polymer is generally designed to operate with marginal lubrication. The construction promotes dimensional stability and improves the thermal conductivity. This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
Application

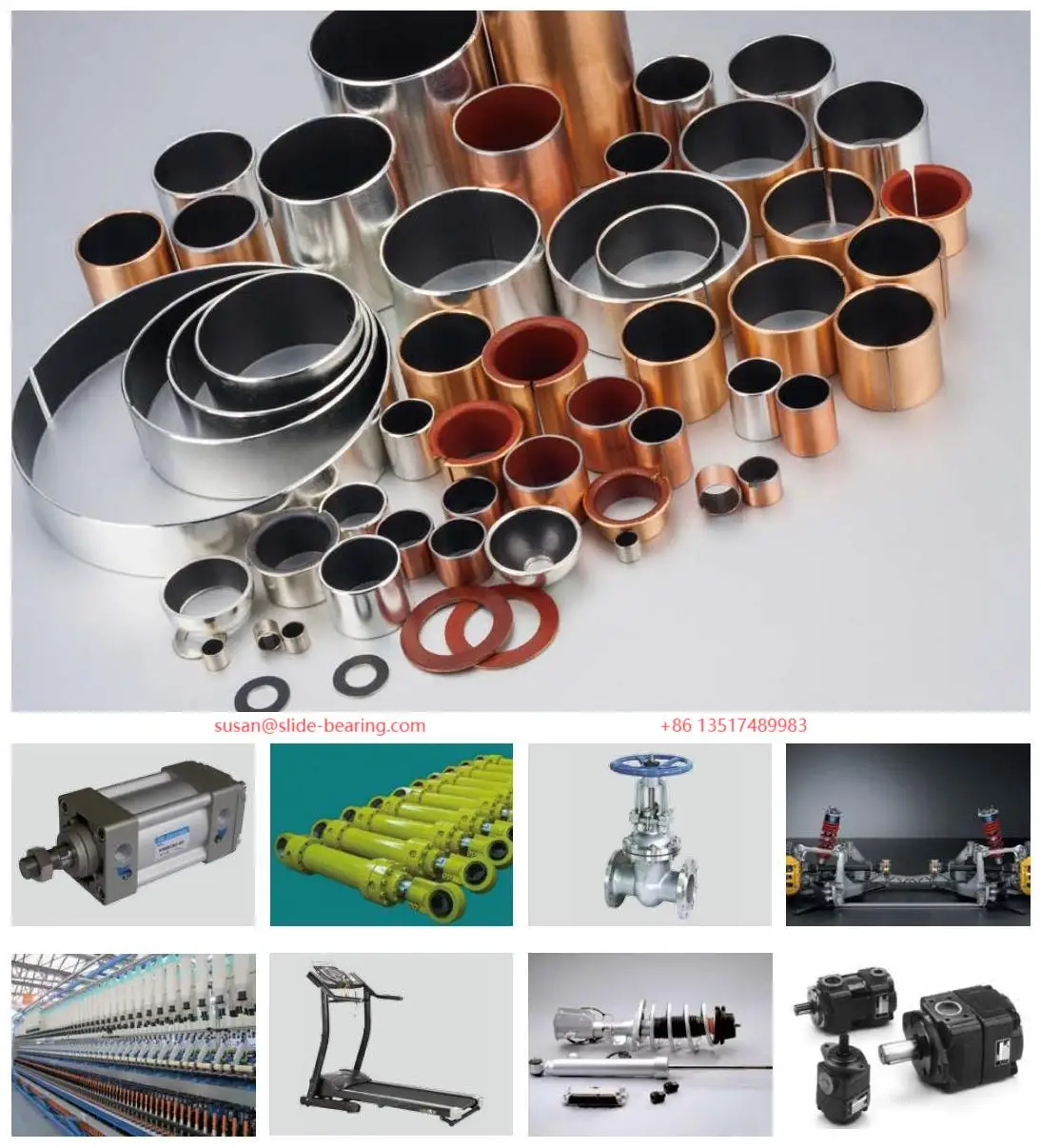

Automotive: tractors, crop sprayers, earthmovers, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, shock absorbers, windshield wiper motor...
Business machines: duplicator, fax machine, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
Metal-polymer self-lubricating composite materials consist of metal backing sintered porous bronze with PTFE polymer as working layer. The metal backing provides mechanical strength, while the bronze sinter layer provides a strong mechanical bonding between the backing and the bearing lining, the PTFE polymer offers exceptional low friction even under dry condition and the thermoplastic polymer is generally designed to operate with marginal lubrication. The construction promotes dimensional stability and improves the thermal conductivity. This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
Application
Automotive: tractors, crop sprayers, earthmovers, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, shock absorbers, windshield wiper motor...
Business machines: duplicator, fax machine, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines...And materials handling, marine engine, packaging, textile equipment, tools...etc.
Structure Characteristics
Metal-polymer marginal lubricating composite materials consist of metal backing sintered porous bronze with POM or PEEK polymer as working layer. Steel backing provides exceptionally high load carrying capacity, excellent heat dissipation. Sintered bronze powder provides thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture. And the POM or PEEK polymer layer provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
Application
Recommended for applications involving intermittent operation or boundary lubrication...
Automotive: Pedal assembly, Balance shaft sleeve, Steering king pin shaft sleeve...
Logistics machine: carrier, chain block, Car crane, packaging machine....And hydraulic motor,Hydraulic cylinders, pneumatic element, agricultural machine...
Metal-polymer marginal lubricating composite materials consist of metal backing sintered porous bronze with POM or PEEK polymer as working layer. Steel backing provides exceptionally high load carrying capacity, excellent heat dissipation. Sintered bronze powder provides thermal conductivity away from the bearing surface, also serves as a reservoir for the resin mixture. And the POM or PEEK polymer layer provides high wear resistance and low friction even with only minute volume of lubricant are supplied, this bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
Application
Recommended for applications involving intermittent operation or boundary lubrication...
Automotive: Pedal assembly, Balance shaft sleeve, Steering king pin shaft sleeve...
Logistics machine: carrier, chain block, Car crane, packaging machine....And hydraulic motor,Hydraulic cylinders, pneumatic element, agricultural machine...

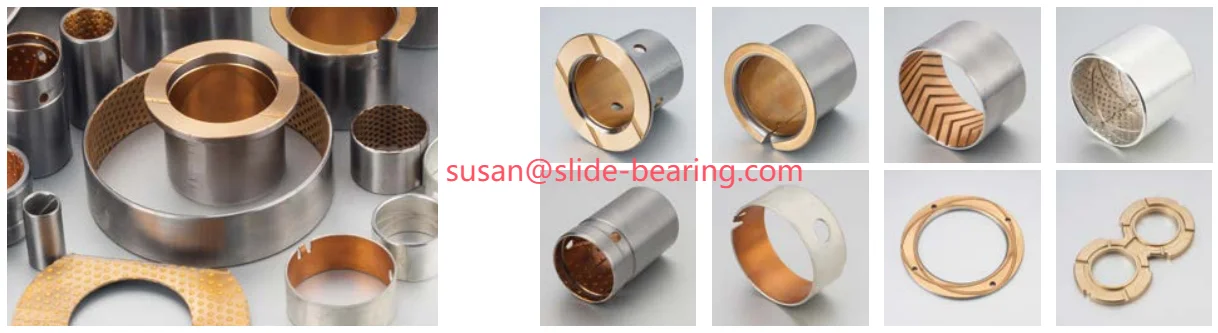

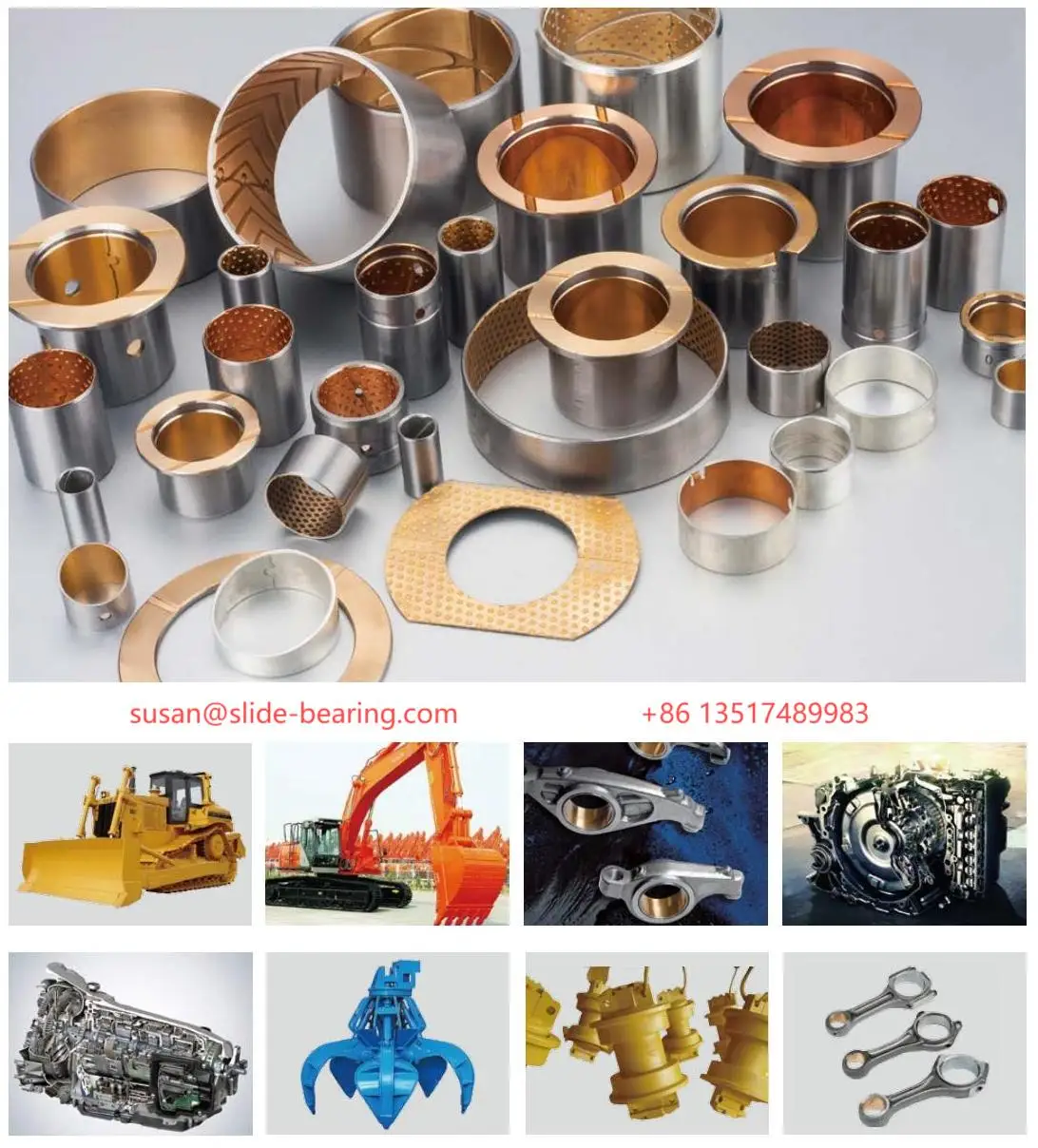

Bi-metallic composite bearings
Structure Characteristics
Bi-metallic composite bearing material consists of steel backing with lead bronze or lead-free copper alloy（CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu）lining, bearing material for oil/grease lubricated applications. The copper alloy forms a continuously frame for thermal conductivity. These bearing structures are with high load capacity and good fatigue property. Higher tolerance can be achieved after re-machined from the customers. Lead-free bronze lining bearing material conforms to the European RoHS directive.
According to the different working conditions, different alloy material(CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu、CuSn8Ni) can be sintered on steel backing.
Bi-metallic composite bearing material consists of steel backing with lead bronze or lead-free copper alloy（CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu）lining, bearing material for oil/grease lubricated applications. The copper alloy forms a continuously frame for thermal conductivity. These bearing structures are with high load capacity and good fatigue property. Higher tolerance can be achieved after re-machined from the customers. Lead-free bronze lining bearing material conforms to the European RoHS directive.
According to the different working conditions, different alloy material(CuPb10Sn10、CuPb6Sn6Zn3、CuPb24Sn4、CuPb30、AlSn20Cu、CuSn8Ni) can be sintered on steel backing.

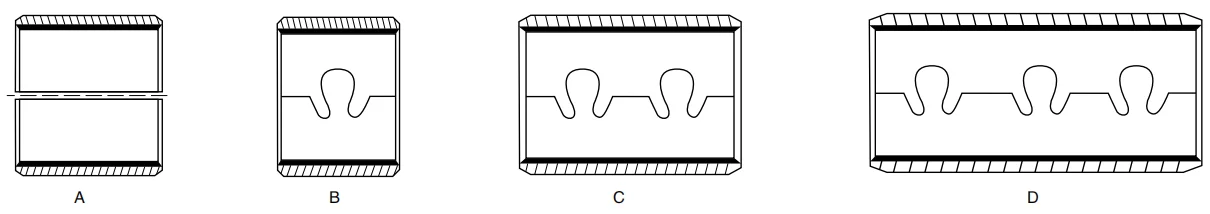

Type for Bi-Metaltic Bushing Grooves and Indents
& Lock Types for Bi-Metaltic Bushing
Application
Application
Angineering machine: underpan, thrust wheel, Towing wheel, Steering knuckle,tension pulley...
Automotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine, And Plunger pump friction plate, gear pump friction plate...
Automotive:trunnion shaft, connecting rod, valve rocker, camshaft, gear box, internal-combustion engine, And Plunger pump friction plate, gear pump friction plate...

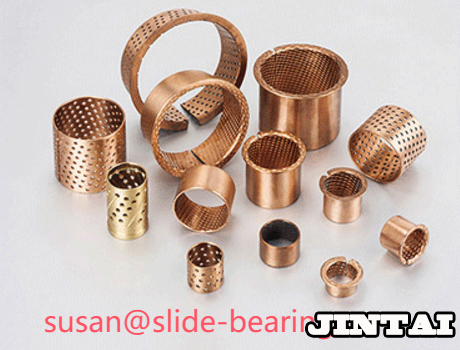

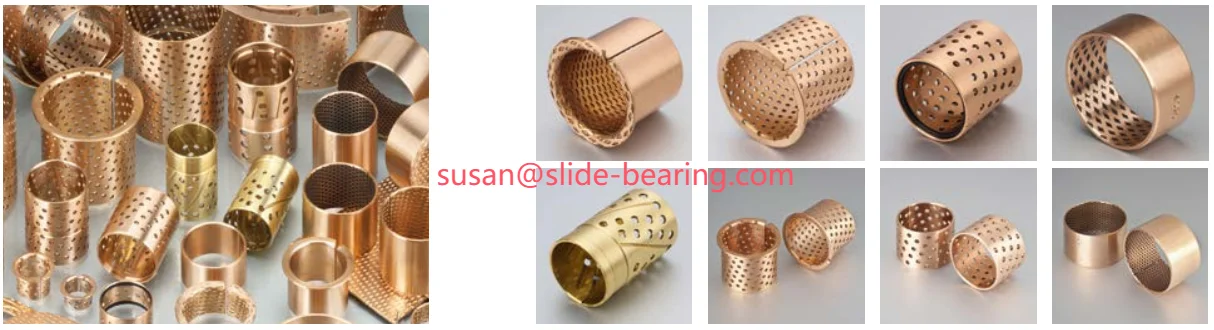

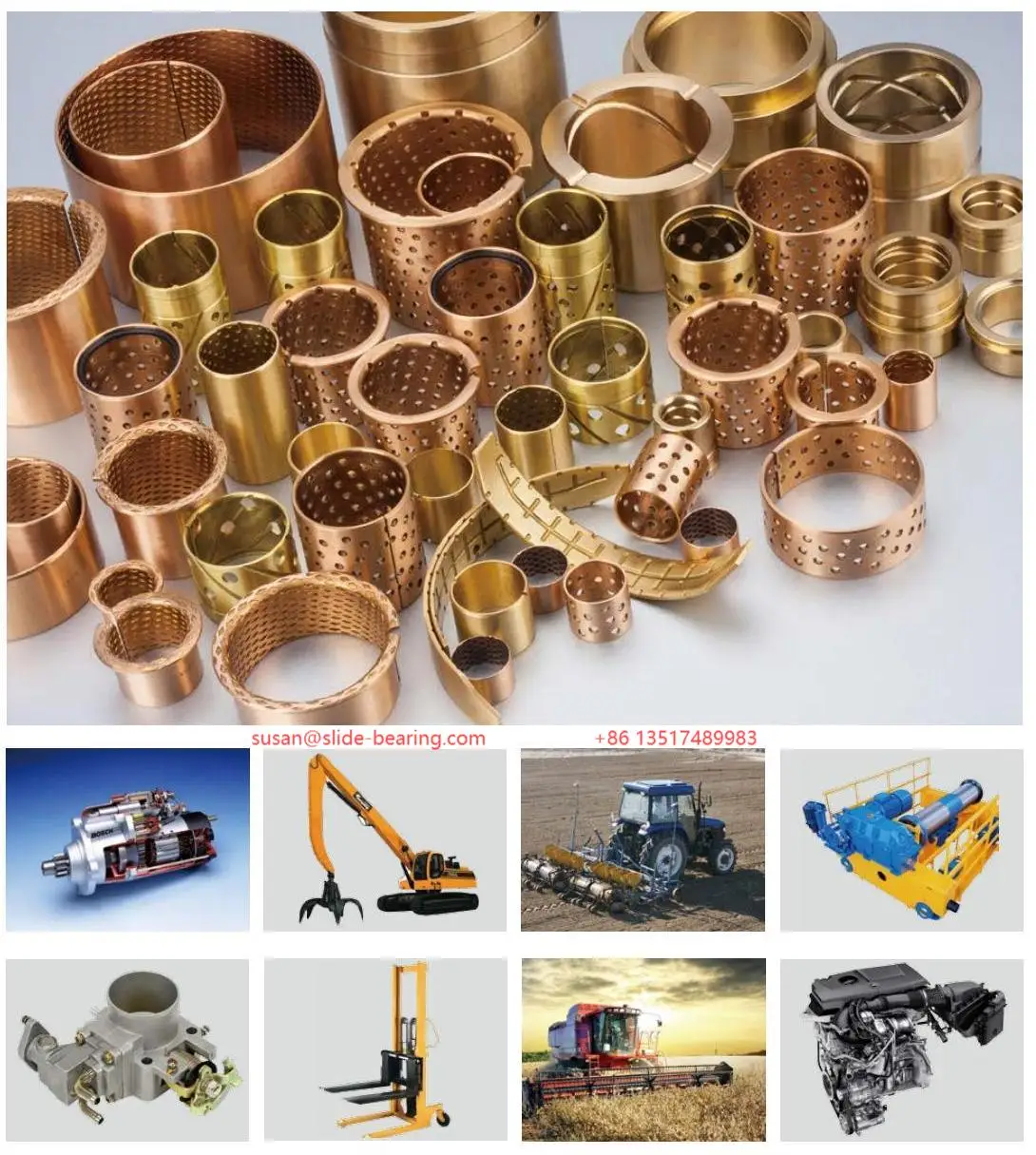

Bronze－Wrapped Bearings
Structure Characteristics
The bearing is made with CuSn8 bronze alloy which is featured with high load capacity and good anti-wearing characteristics. The diamond shape indents on the surface of the bearing serve as oil reservoir to generate oil film for the lubricating during the initial running. The bearings are mainly suitable for agriculture machineries and construction machineries applications.
Application
Agricultural machine, construction machine, crane, underpan parts, conveyor, elevator, winch, planing machine...
The bearing is made with CuSn8 bronze alloy which is featured with high load capacity and good anti-wearing characteristics. The diamond shape indents on the surface of the bearing serve as oil reservoir to generate oil film for the lubricating during the initial running. The bearings are mainly suitable for agriculture machineries and construction machineries applications.
Application
Agricultural machine, construction machine, crane, underpan parts, conveyor, elevator, winch, planing machine...
